Authentic Homes

TOWNHOME No.2

TOWNHOME No.2

$4,098.50 USD
$4,098.50 USD
Sale Sold out

Townhome house plan

Two Townhomes that can be mirrored and/or arrayed in unlimited combinations.

WIDTH: 24 for two units

DEPTH: 54

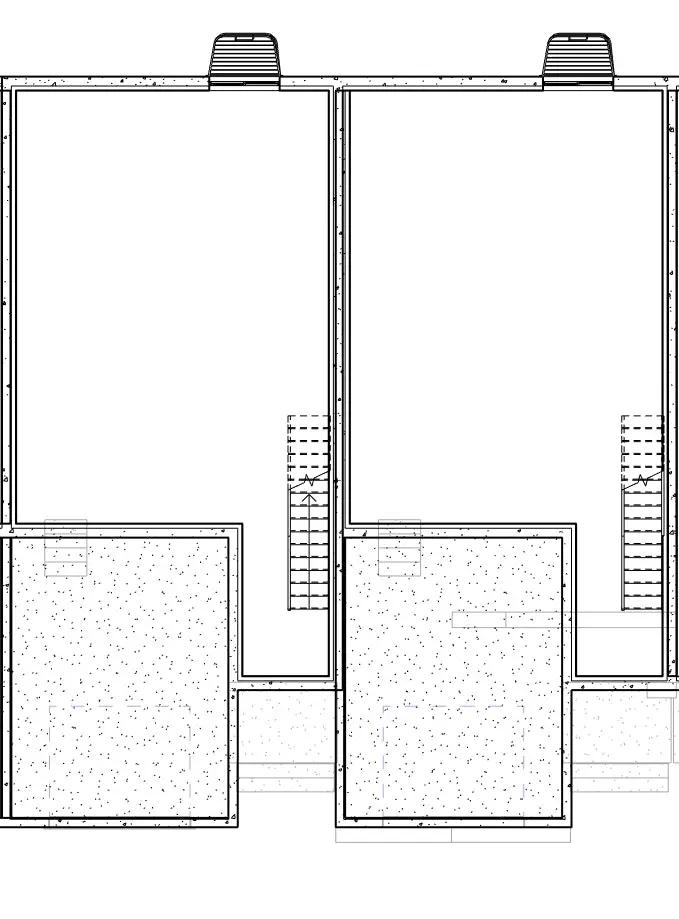

HOME 1: SQ FT: 2877 (Includes 897 unfinished basement)

BEDROOMS: 3 BATHROOMS: 2.5 ONE CAR GARAGE

FEATURES:

  • Dramatic staircase
  • Gas fireplace
  • Two story vaulted living room
  • Mudroom
  • Large island and Butler's Pantry
  • Loft
  • Private yard
  • Townhome house plan with modern appeal

HOME 2: SQ FT: 2926 (Includes 897 unfinished basement)

BEDROOMS: 3 BATHROOMS: 2.5 ONE CAR GARAGE

FEATURES:

  • Dramatic staircase
  • Gas fireplace
  • Two story vaulted living room
  • Mudroom
  • Large island and Butler's Pantry
  • Loft
  • Private yard
  • Larger bedrooms, bathroom, and two story vault

I am the sole designer/drafter of my company Authentic Homes which guarantees you personalized attention if you have questions or need modifications to this Townhome house plan. Purchased plans are sent as a PDF file by email.

Please email me at AuthenticPlans@gmail.com for a Stock Plan Contract before purchasing, thank you.

 PLANS INCLUDE:

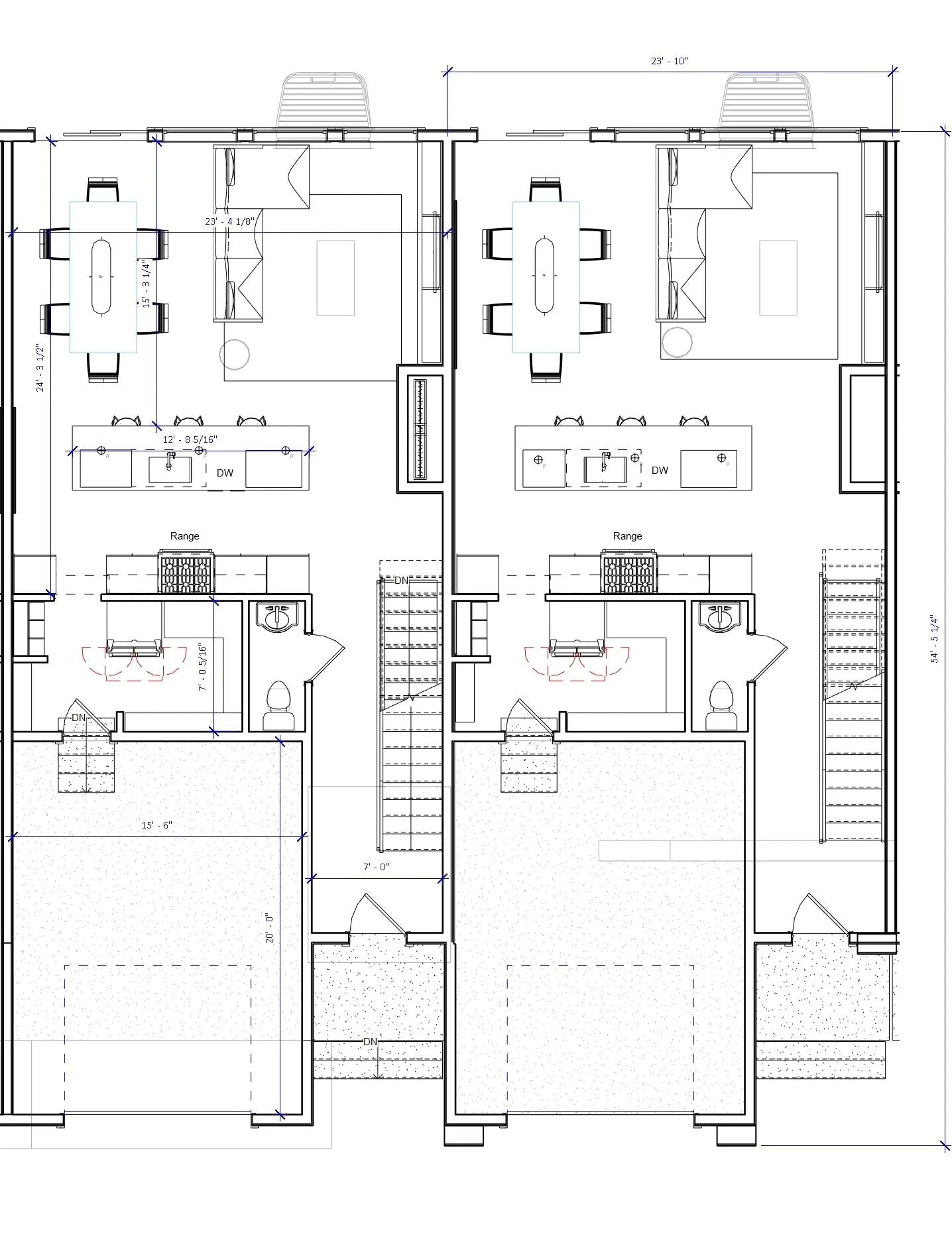

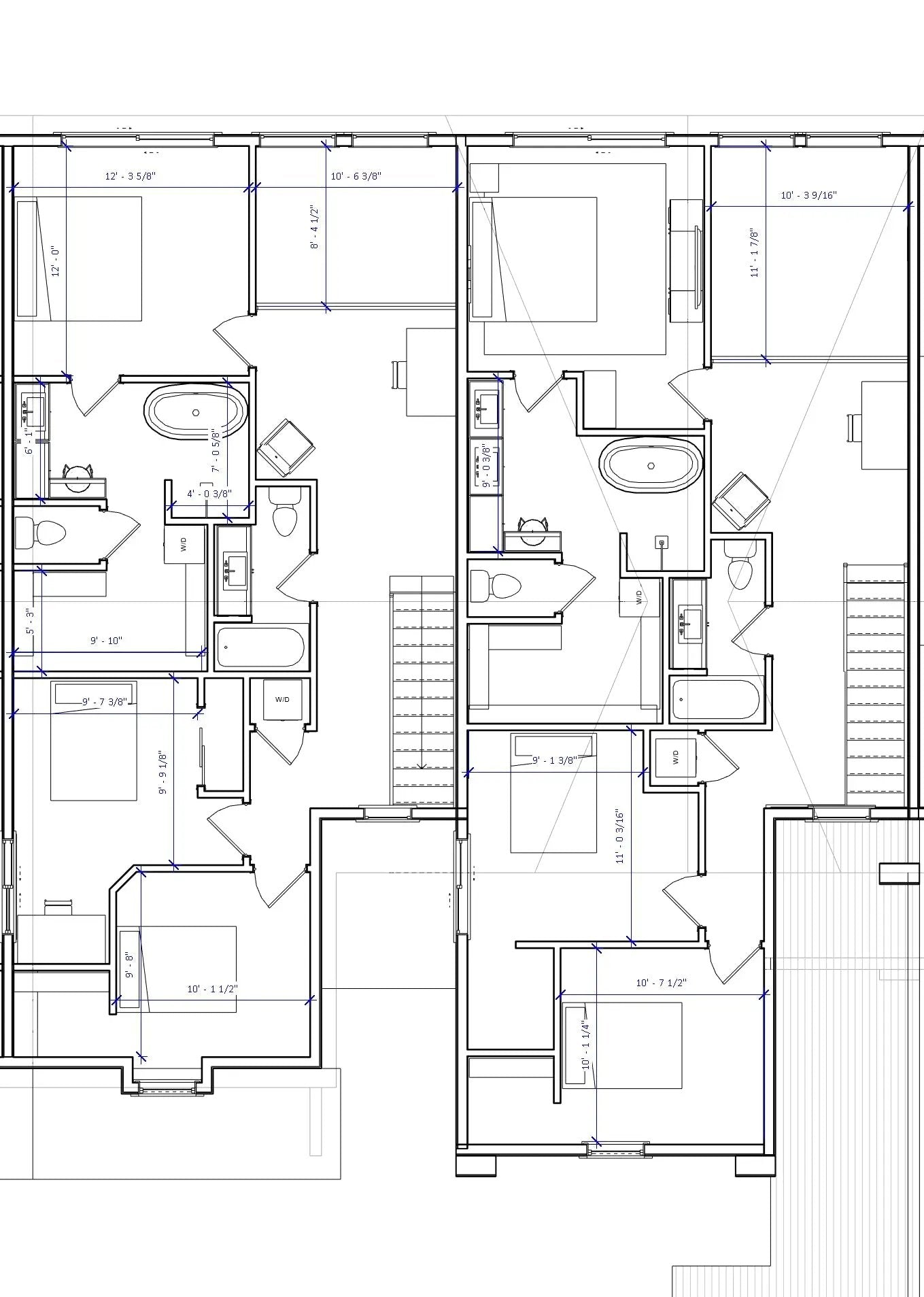

  • Floor & Roof Plans, 3D Views
  • Elevations & Sections
  • Electrical & General Code Notes
  • Plumbing Placement
  • General Cabinet Placement
  • Schedules: Roof, Window, Walls, Cabinets (approx.)

PLANS DO NOT INCLUDE:

  • HVAC Specifications, Energy Calculations
  • Plumbing or Gas Lines
  • Site Plan (these are lot specific, $75 an hour)
  • Structural Engineering (I work with an Engineer in Utah and can obtain a bid)

 See demo set of house plans, plans are not returnable for a refund once the PDF of plans has been emailed as the product has been delivered. However, Authentic Homes will make every effort to resolve concerns. ALL PLANS ARE PROTECTED BY COPYRIGHT LAWS.
