ADU No.30

ADU No.30

ADU house plan

SQ FT: 1020, 999 Garage
WIDTH: 24' 2"
DEPTH: 43'

BEDROOMS: 2
BATHROOMS: 2
FEATURES::

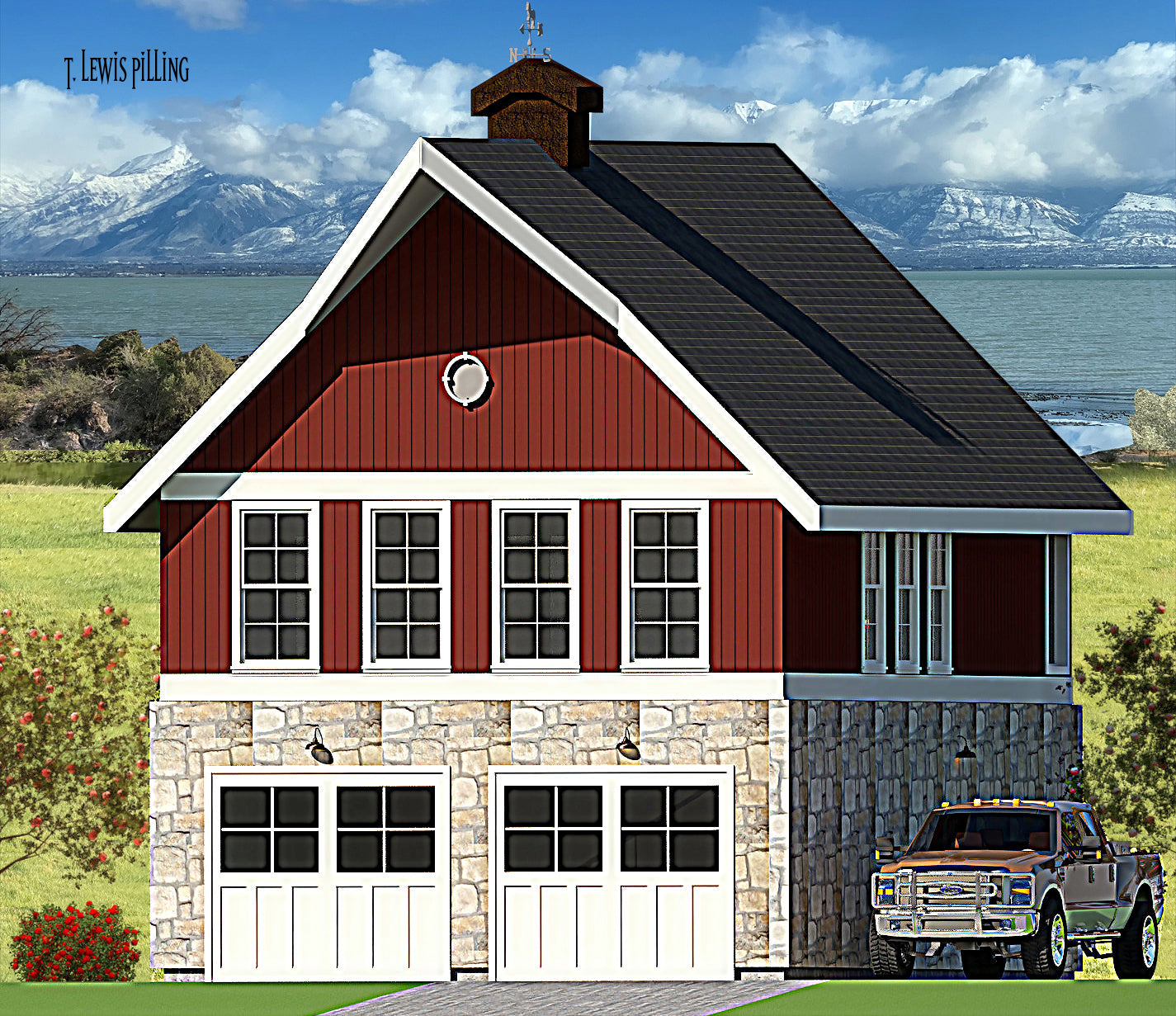

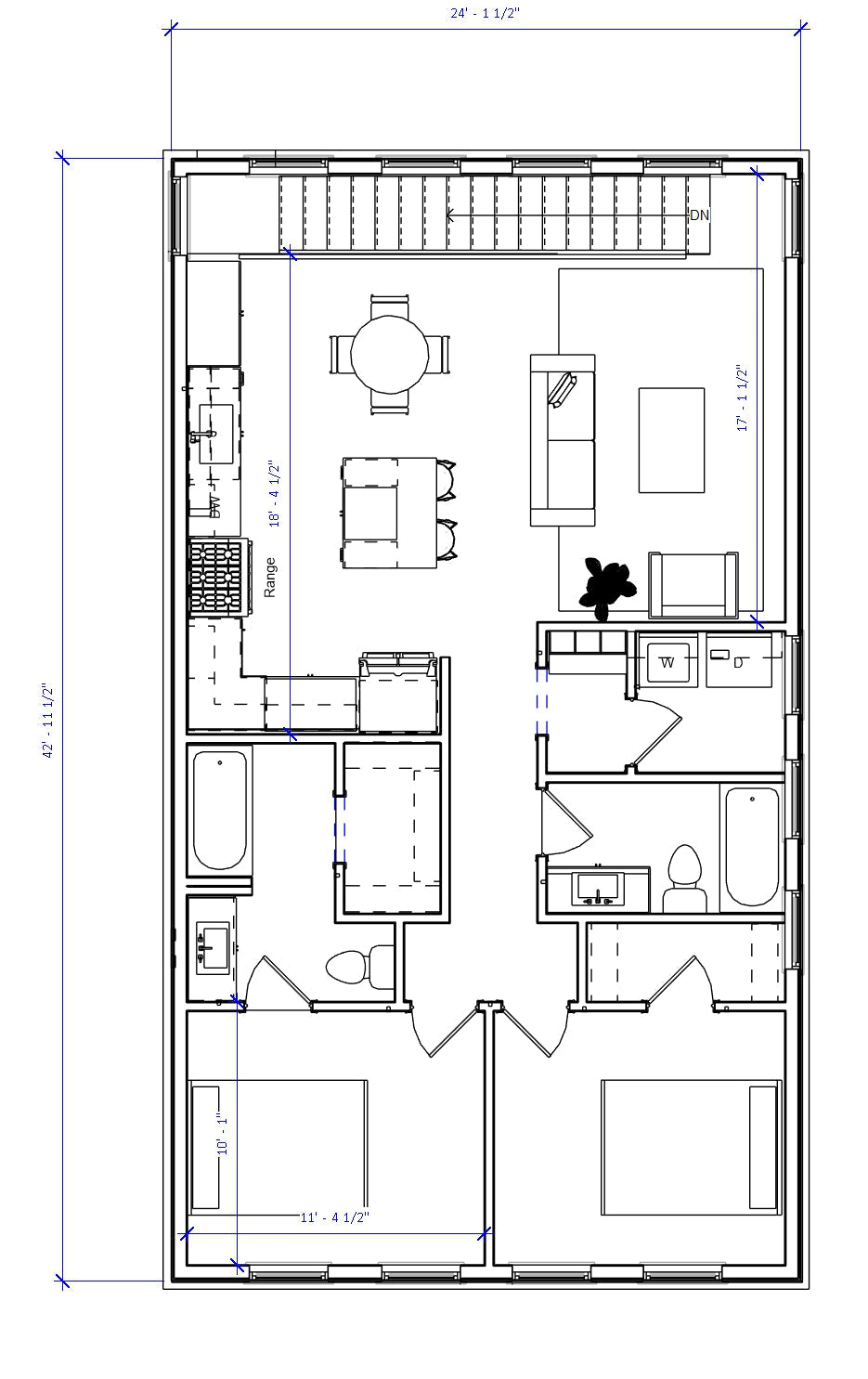

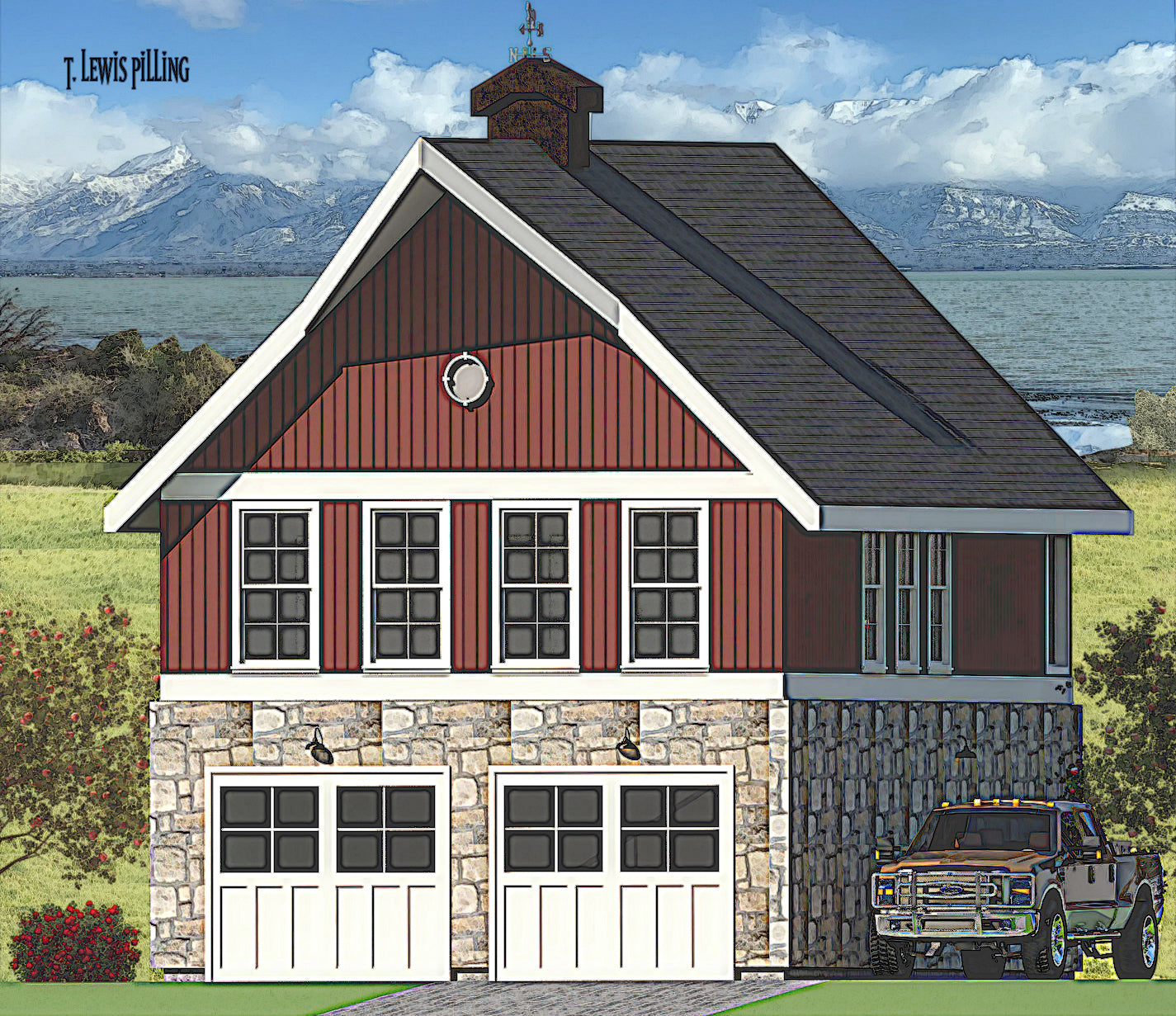

  • Light filled great room in this farmhouse ADU house plan

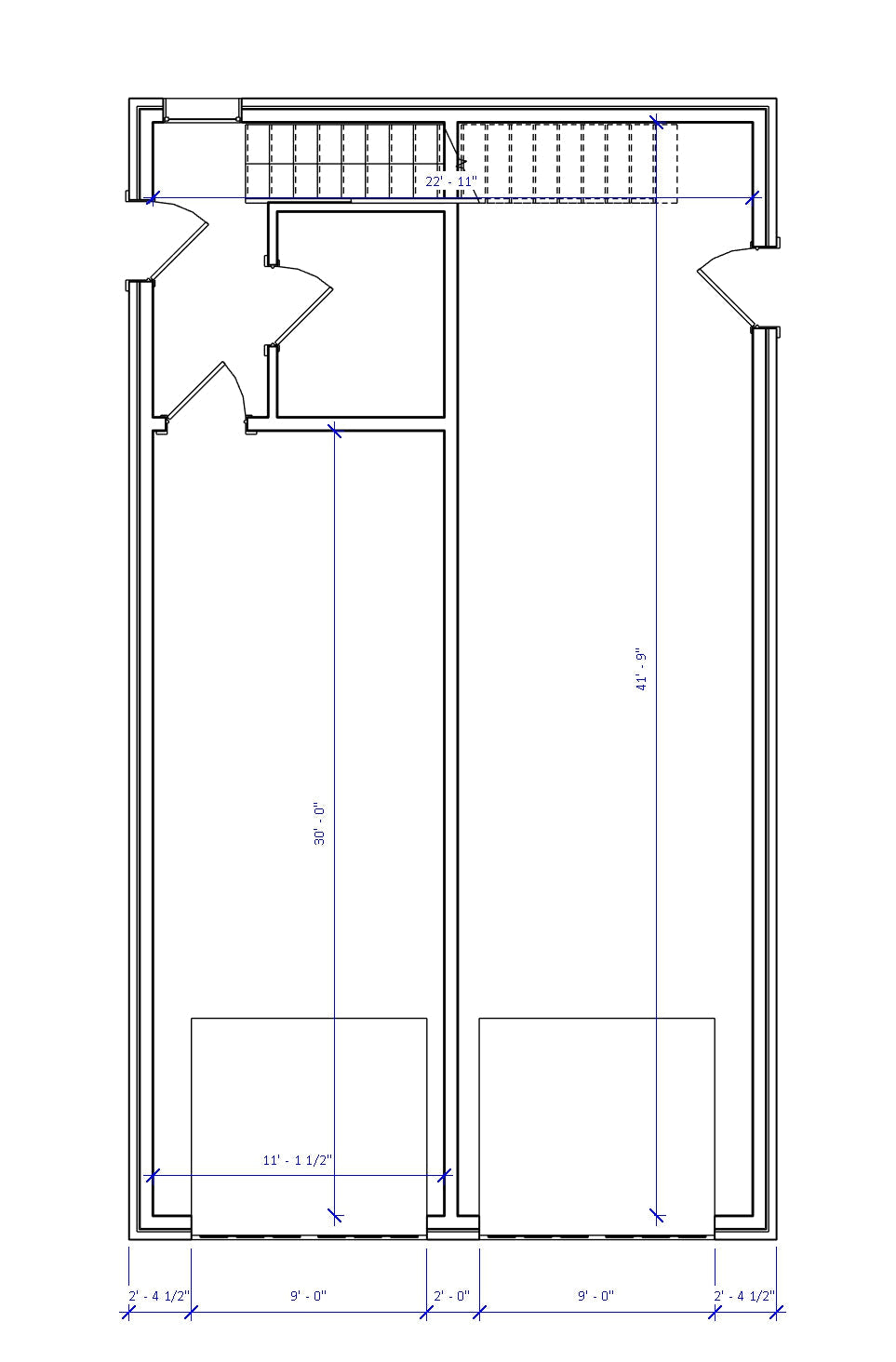

  • Double garage with storage/garage for owners

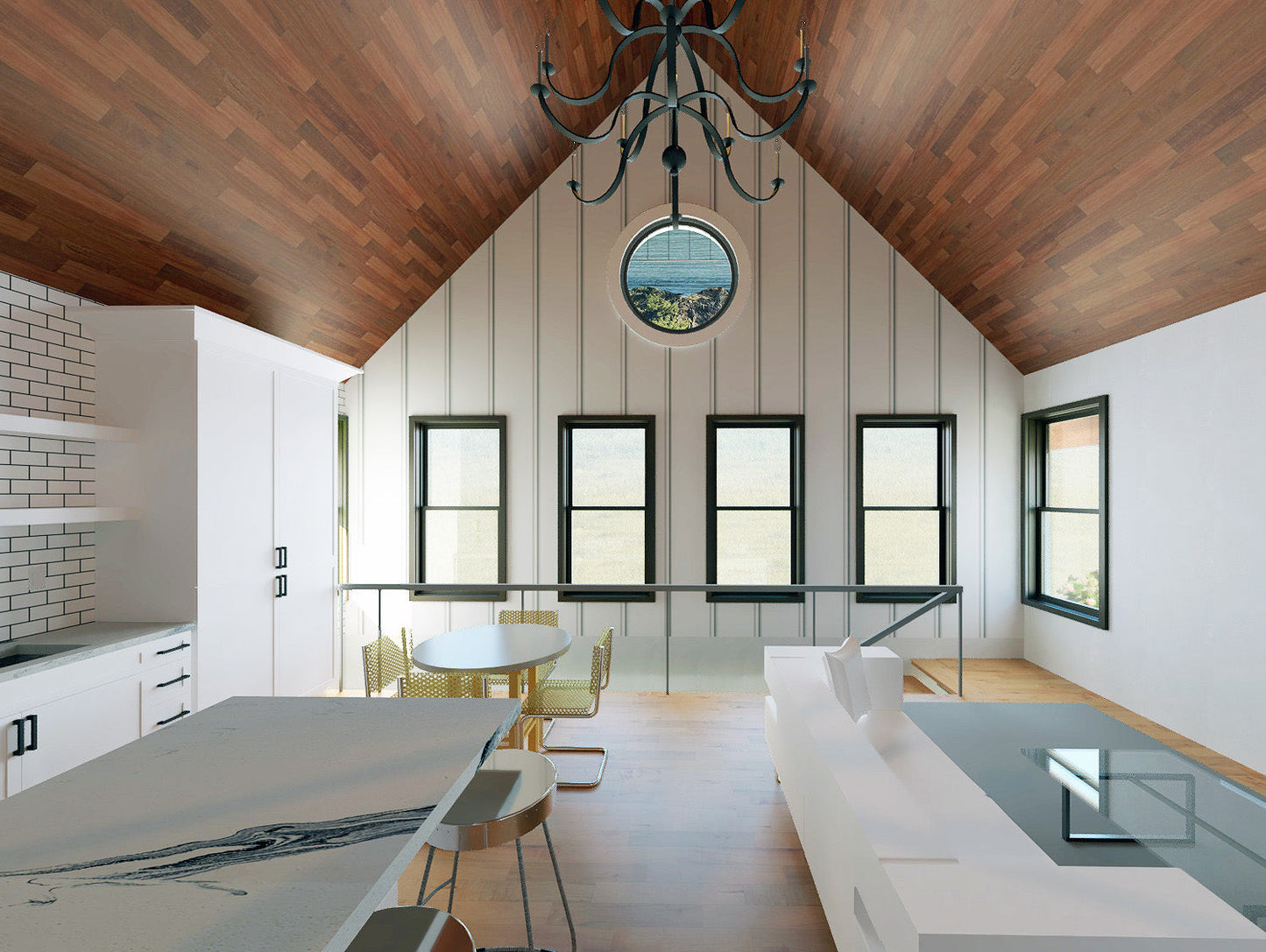

  • Staircase feature and vaulted ceilings

I am the sole designer/drafter of my company Authentic Homes which guarantees you personalized attention if you have questions or need modifications to this ADU house plan. Purchased plans are sent as a PDF file by email.

Please email me at AuthenticPlans@gmail.com for a Stock Plan Contract before purchasing, thank you.

 PLANS INCLUDE:

  • Floor & Roof Plans, 3D Views
  • Elevations & Sections
  • Electrical & General Code Notes
  • Plumbing Placement
  • General Cabinet Placement
  • Schedules: Roof, Window, Walls, Cabinets (approx.)

PLANS DO NOT INCLUDE:

  • HVAC Specifications, Energy Calculations
  • Plumbing or Gas Lines
  • Site Plan (these are lot specific, $75 an hour)
  • Structural Engineering (I work with an Engineer in Utah and can obtain a bid)

 See demo set of house plans, plans are not returnable for a refund once the PDF of plans has been emailed as the product has been delivered. However, Authentic Homes will make every effort to resolve concerns. ALL PLANS ARE PROTECTED BY COPYRIGHT LAWS.




$1,010.00 USD
