Authentic Homes

SHINGLE No.4

SHINGLE No.4

Regular price $2,767.00 USD
Regular price Sale price $2,767.00 USD
Sale Sold out

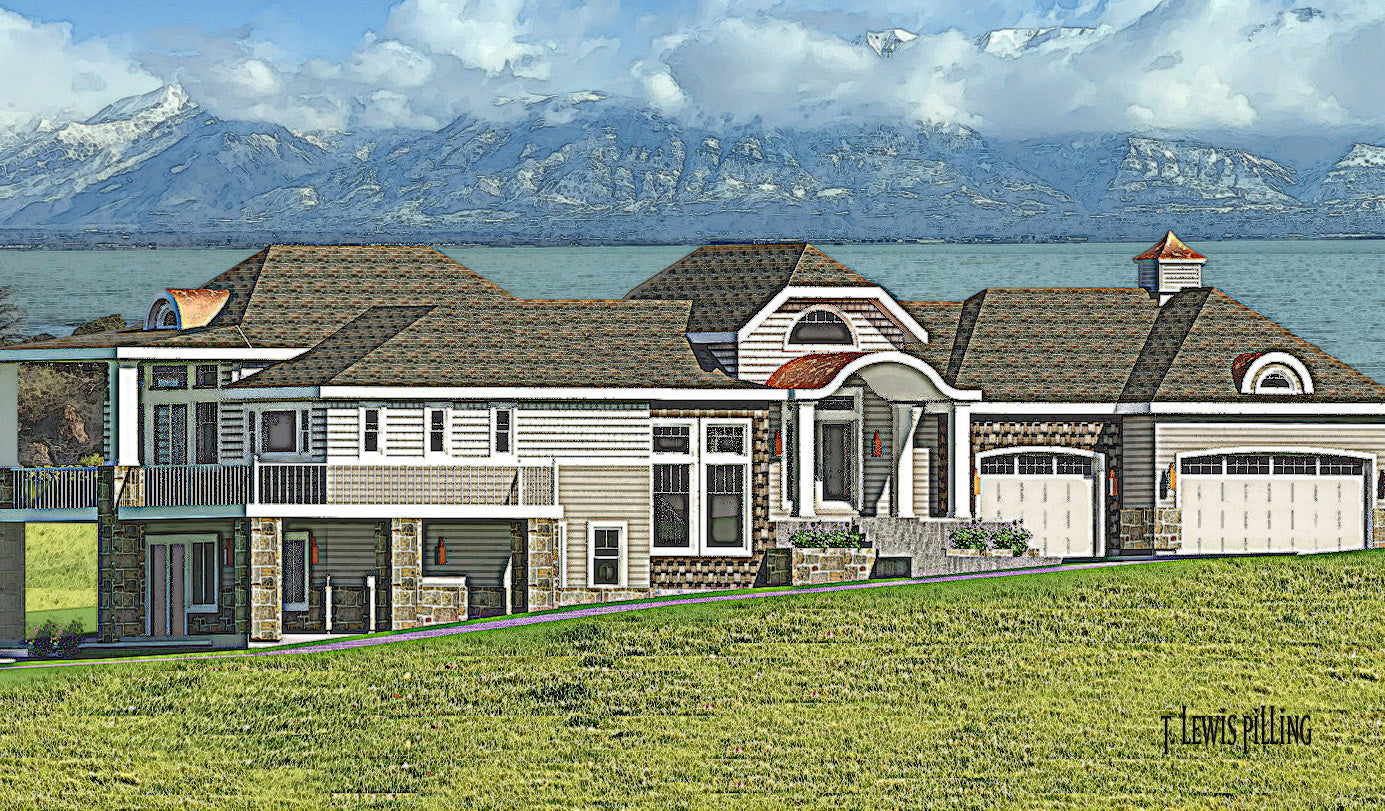

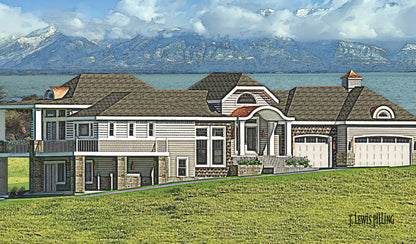

Shingle house plan

SQ FT: 4647, 887 garage

WIDTH: 92

DEPTH: 50

BEDROOMS: 5

BATHROOMS:3.5

Designed for a sloped lot with a view. The entrance or deck could face the road.

FEATURES:

  • Attractive entry w/office adds character to this Shingle house plan
  • Staircase feature
  • Vaulted first floor living/dining
  • Vaulted office
  • Light filled great room
  • Main floor owner's suite
  • Shared bathrooms have separate tub area
  • Exercise room

I am the sole designer/drafter of my company Authentic Homes which guarantees you personalized attention if you have questions or need modifications to this Shingle house plan. Purchased plans are sent as a PDF file by email.

Please email me at AuthenticPlans@gmail.com for a Stock Plan Contract before purchasing, thank you.

 PLANS INCLUDE:

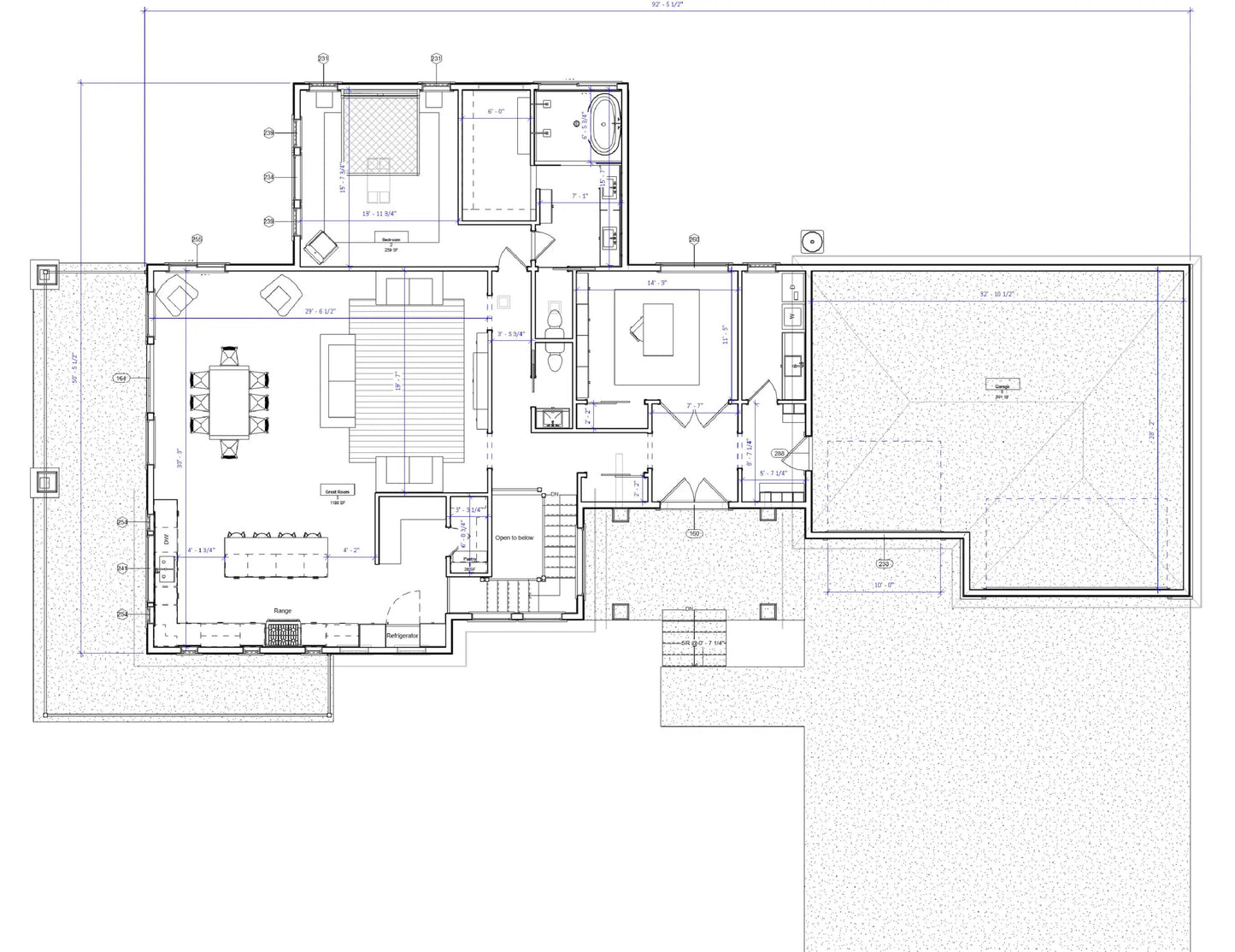

  • Floor & Roof Plans, 3D Views
  • Elevations & Sections
  • Electrical & General Code Notes
  • Plumbing Placement
  • General Cabinet Placement
  • Schedules: Roof, Window, Walls, Cabinets (approx.)

PLANS DO NOT INCLUDE:

  • HVAC Specifications, Energy Calculations
  • Plumbing or Gas Lines
  • Site Plan (these are lot specific, $75 an hour)
  • Structural Engineering (I work with an Engineer in Utah and can obtain a bid)

 See demo set of house plans, plans are not returnable for a refund once the PDF of plans has been emailed as the product has been delivered. However, Authentic Homes will make every effort to resolve concerns. ALL PLANS ARE PROTECTED BY COPYRIGHT LAWS.
