Authentic Homes

Cottage No.2

Cottage No.2

Cottage house plan

SQ FT: 4352, 411 garage

WIDTH: 49

DEPTH: 62

BEDROOMS: 5

BATHROOMS: 3.5

FEATURES::

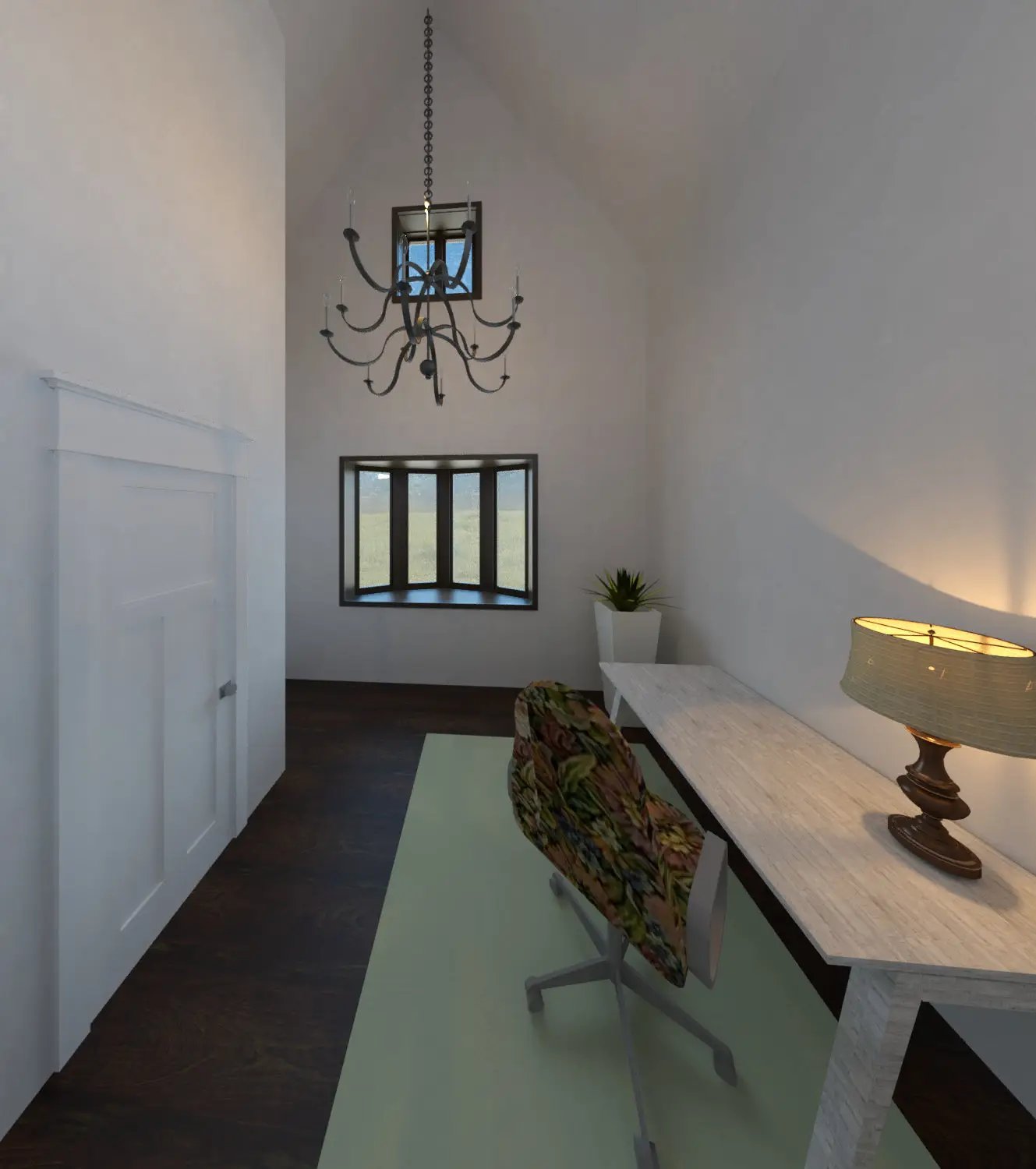

  • Vaulted office
  • Loft over dining room
  • Large pantry, tucked away fridge
  • Main floor master
  • Walk in closets
  • Large basement family room
  • Cottage house plan with loads of character

I am the sole designer/drafter of my company Authentic Homes which guarantees you personalized attention if you have questions or need modifications for this Cottage house plan. Purchased plans are sent as a PDF file by email.

Please email me at AuthenticPlans@gmail.com for a Stock Plan Contract before purchasing, thank you.

 PLANS INCLUDE:

  • Floor & Roof Plans, 3D Views
  • Elevations & Sections
  • Electrical & General Code Notes
  • Plumbing Placement
  • General Cabinet Placement
  • Schedules: Roof, Window, Walls, Cabinets (approx.)

PLANS DO NOT INCLUDE:

  • HVAC Specifications, Energy Calculations
  • Plumbing or Gas Lines
  • Site Plan (these are lot specific, $75 an hour)
  • Structural Engineering (I work with an Engineer in Utah and can obtain a bid)

 See demo set of house plans, plans are not returnable for a refund once the PDF of plans has been emailed as the product has been delivered. However, Authentic Homes will make every effort to resolve concerns. ALL PLANS ARE PROTECTED BY COPYRIGHT LAWS.

$2,381.00 USD
