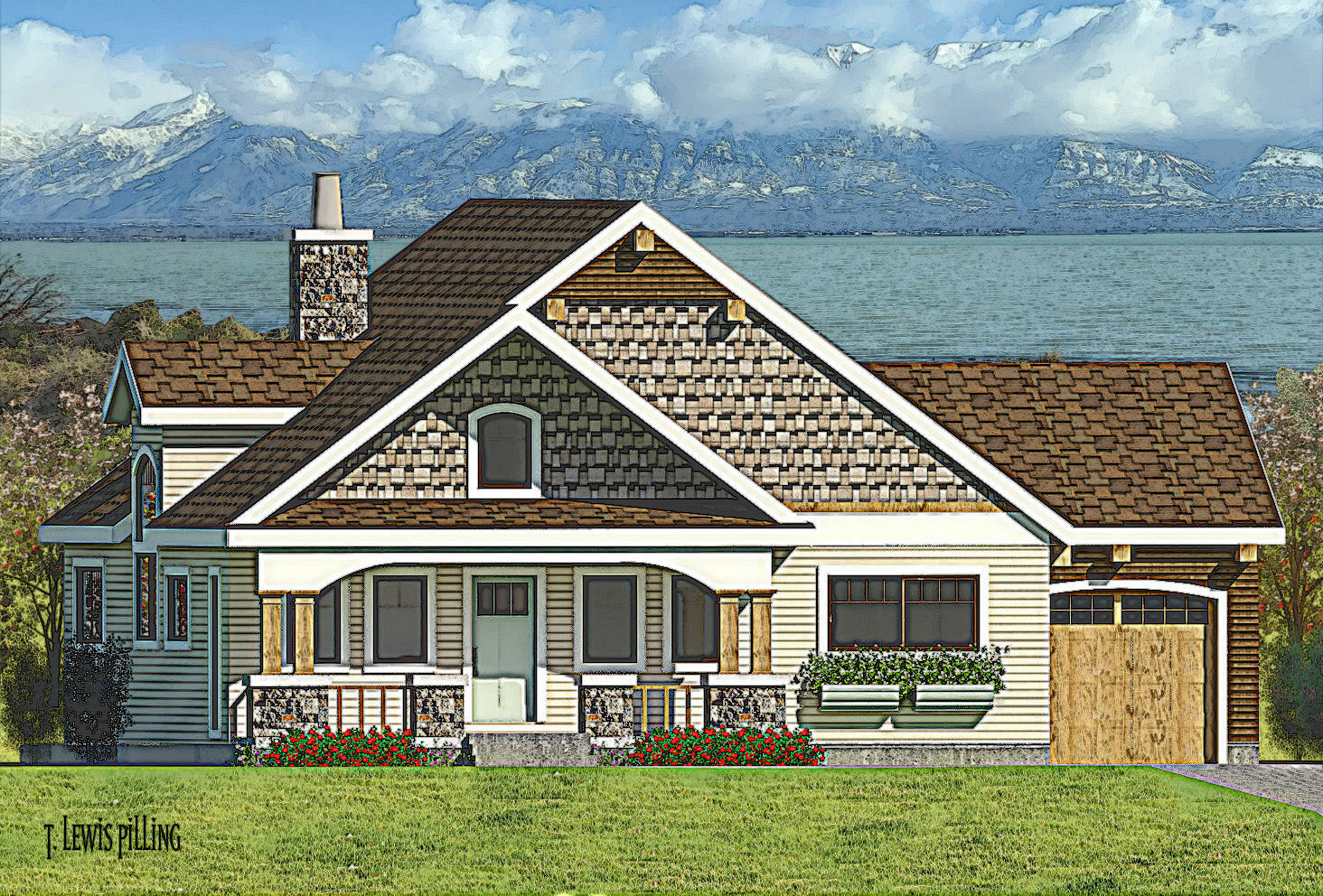

• House plan exterior, design by Authentic Homes in Utah. Craftsman styling with siding and stone. Timbers and arched entry. Window boxes.
  • vaulted dining room
  • cozy living room with reading nook and fireplace
  • kitchen with large window over sink
  • staircase off of entry
  • bedroom with asymetrical vault and wood paneled wal
  • floor plan
  • floor plan
1 8

Authentic Homes

No.6 Craftsman house plan Vaulted Dining

No.6 Craftsman house plan Vaulted Dining

Craftsman house plan

SQ FT: 3493, 734 garage

WIDTH: 50
DEPTH: 61
BEDROOMS: 4
BEATHROOMS: 3.5
FEATURES::
  • Office in this Craftsman house plan
  • Library area with reading nook
  • Fireplace
  • Vaulted dining and living room
  • Main floor owner's suite
  • Theater

I am the sole designer/drafter of my Utah company Authentic Homes which guarantees you personalized attention if you have questions or need modifications to this Craftsman house plan. Purchased plans are sent as a PDF file by email.

Please email me at AuthenticPlans@gmail.com for a Stock Plan Contract before purchasing, thank you.

 PLANS INCLUDE:

  • Floor & Roof Plans, 3D Views
  • Elevations & Sections
  • Electrical & General Code Notes
  • Plumbing Placement
  • General Cabinet Placement
  • Schedules: Roof, Window, Walls, Cabinets (approx.)

PLANS DO NOT INCLUDE:

  • HVAC Specifications, Energy Calculations
  • Plumbing or Gas Lines
  • Site Plan (these are lot specific, $75 an hour)
  • Structural Engineering (I work with an Engineer in Utah and can obtain a bid)

 See demo set of house plans, plans are not returnable for a refund once the PDF of plans has been emailed as the product has been delivered. However, Authentic Homes will make every effort to resolve concerns. ALL PLANS ARE PROTECTED BY COPYRIGHT LAWS.
