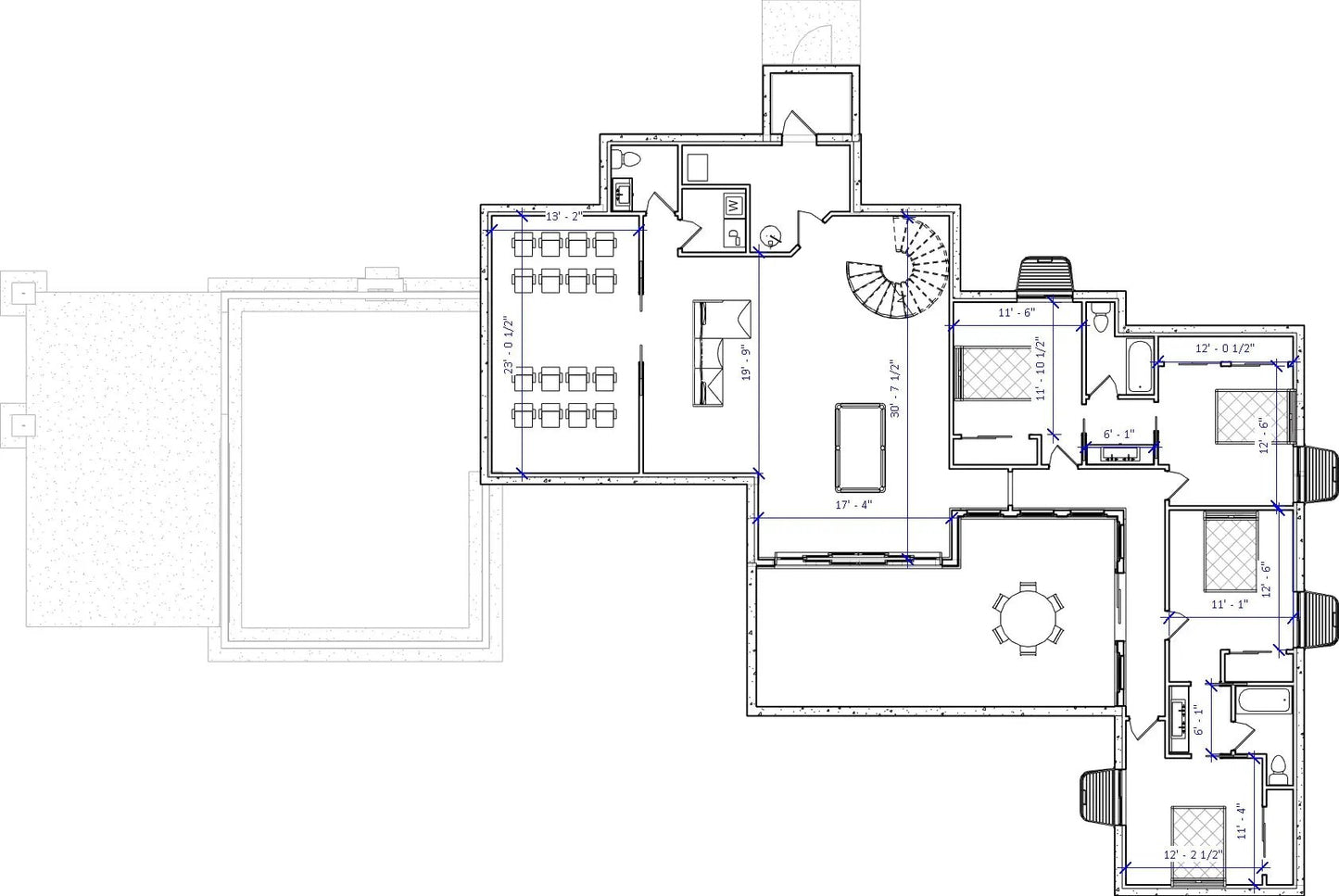

  • a drawing of a floor plan of a house
1 5

Authentic Homes

Modern No.7

Modern No.7

Modern House Plan

SQ FT: 5544, 764 garage

WIDTH: 97

DEPTH: 74

BEDROOMS: 5

BATHROOMS: 4

FEATURES:

  • Circular staircase
  • Office
  • Large kitchen w/butlers pantry
  • Private formal light filled dining room w/ side library
  • Spacious main floor entertaining w/lofty vaults
  • Loft family room w/large walkable roof over garage and "pier" deck
  • Luxurious main floor owner's suite w/fireplace and secret entrance to library add character to this modern house plan
  • Large theater
  • Shared bathrooms have separate tub area

I am the sole designer/drafter of my company Authentic Homes which guarantees you personalized attention if you have questions or need modifications to this modern house plan. Purchased plans are sent as a PDF file by email.

Please email me at AuthenticPlans@gmail.com for a Stock Plan Contract before purchasing, thank you.

 PLANS INCLUDE:

  • Floor & Roof Plans, 3D Views
  • Elevations & Sections
  • Electrical & General Code Notes
  • Plumbing Placement
  • General Cabinet Placement
  • Schedules: Roof, Window, Walls, Cabinets (approx.)

PLANS DO NOT INCLUDE:

  • HVAC Specifications, Energy Calculations
  • Plumbing or Gas Lines
  • Site Plan (these are lot specific, $75 an hour)
  • Structural Engineering (I work with an Engineer in Utah and can obtain a bid)

 See demo set of house plans, plans are not returnable for a refund once the PDF of plans has been emailed as the product has been delivered. However, Authentic Homes will make every effort to resolve concerns. ALL PLANS ARE PROTECTED BY COPYRIGHT LAWS.

$3,154.00 USD
$3,154.00 USD
Sale Sold out
View full details
